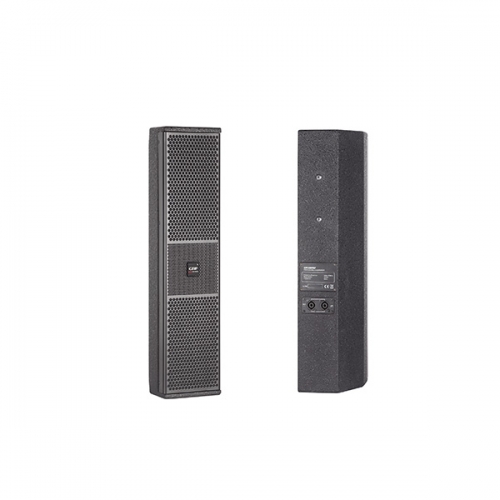

SR500MF is latest two-way full rang professional speaker as the new member of GRF SmartRay family. Compact, lightweight, and easy to install as other members of SmartRay, it is a smart choice to make perfect sound reinforcement in any kinds of fixture, also, it is ideal for theaters, churches, conference halls, schools such small size and medium size venues, which require high quality reinforcement.
SR500MF has built-in 4X4” LF and 1X1.4” HF. Permeabilitydelicate and clear bright MF, powerful bass, rotatable HF horn, enable reinforcement of sound smooth and can be adjusted as needed. High quality birch plywood cabinet, abrasion proof and water proof surface, compression resistance and loss prevention corrosion resistant ability, rotatable logo implant in mesh enclosure, can be adjust according to need of installation.
SR500MF Cabinet with mounting hole, it is easy to match with subwoofer to extend LF output.
Model |
SR500MF |
Frequency Response |
100Hz-20KHz |
Component |
LF:4X4” HF:1X1.4” |
Rated Power |
200W |
Sensitivity |
95dB |
Maximum SPL |
121dB |
Nominal Impedance |
4ohms |
Dispersion |
90°H X60°V |
Finish |
Black ,scrath paint |
Connector |
2xNL4 |
Dimension(HWD) |
631x149x195mm |
N.G |
8.8kg |
