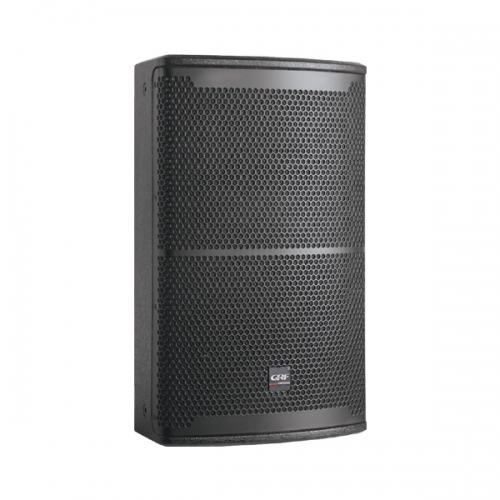

Model |
AF10 |
| Frequency Response | 55Hz~18KHz(±3dB) |
| Component | LF:1x10"(2.6"voice coil), HF:1x1"(1.75"voice coil) |
|
Rated Power |
300W AES |
| Recommended Amplifier | 600W into 8ohms |
| Sensitivity | 96dB |
| Maximum SPL | 124dB/1m |
| Nominal Impedance | 8 ohms |
| Dispersion | 90°Hx45°V |
| Enclosure | Birch plywood |
| Finish | Black ,scrath paint |
| Grill | Steel grill with black foam |
| Connector | 2xNeutrik NL 4 |
| Dimension(HWD) | 508x305x350mm |
| N.W. | 16.2Kg |
