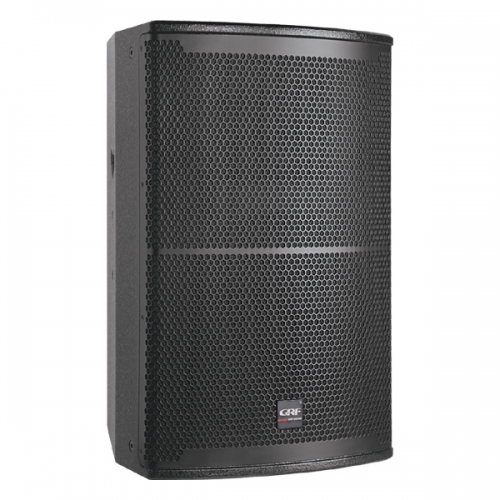

Model |
AF15 |
Frequency Response | 50Hz~18KHz(±3dB) |
Component | LF:1x15"(3"voice coil), HF:1x1"(1.75"voice coil) |
Rated Power |
500W AES |
Recommended Amplifier | 1000W into 8ohms |
Sensitivity | 98dB |
Maximum SPL | 128dB/1m |
Nominal Impedance | 8 ohms |
Dispersion | 90°Hx60°V |
Enclosure | Birch plywood |
Finish | Black ,scrath paint |
Grill | Steel grill with black foam |
Connector | 2xNeutrik NL 4 |
Dimension(HWD) | 690x430x500mm |
N.W. | 29.6Kg |
