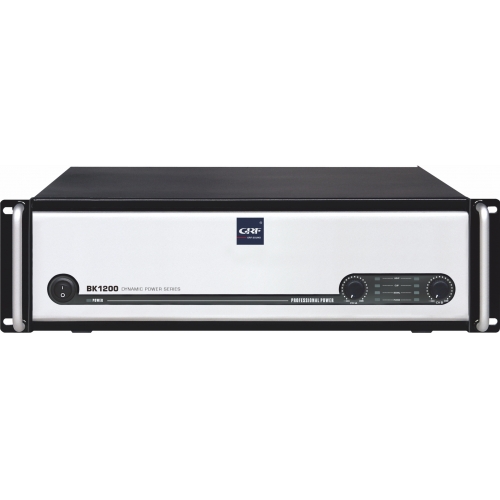

| Model | BK1200 | |
| Rated Power 1KHz THD ≤ 0.1% | Stereo 8ohms | 1200W+1200W |
| Stereo 4ohms | 1800W+1800W | |
| Bridge 8ohms | 2300W | |
| S/N Ratio (1KHz, a weight) | >102dB | |
| Total Harmonic Distortion (at full rated power, 20Hz - 20kHz) | <0.14% | |
| Frequency Response | 20Hz-20KHz±1dB | |
| Input Sensitivity | Switchable 0.775V/1V/1.4V | |
| Max. Input Level | 21dBV/6V | |
| Lowest Loading Impedance | Stereo 4~8 ohms, Parallel 4~8ohms,Bridge 8~16ohms | |
| Crosstalk @ Rated output power 8 ohms 1KHz | >50dB | |
| Damping Factor f = 1KHz 8 ohms | >350 | |
| Protection | Over load, short circuit, current limited, DC fault, AC line fuse, thermal Cut off, power up/down transients,Soft start |
|
| Indicator | Power(1 blue),Signal(5 blue),Clip(1 blue),Protection(1 blue) | |
| Cooling | Variable speed fan,Radiative temperature control | |
| Front Panel Controls | Level CH A,CH B ,Power switch | |
| Rear Panel Controls | Stereo/Bridge/Single channel mode selector,0.77V/26dB/1.4V INPUT sensitivity switch | |
| Connector | Balance XLR Input, XLR link output, Speakon output ,bingding post output | |
| Power Consumption (W) @ half power 8ohms | 1680 | |
| Power Supply | Optional 110V~120V/60Hz or 220~240V50Hz | |
| Power cord | European, Chinese, Austrilian or American | |
| Net Weight (kg) | 37 | |
| Dimensions (HXWXD)mm | 132X483X485 | |
