There are several important technical points to match power amplifiers in the speaker system, the most basic considerations are as following:- If the damping factor of the amplifier is ideal (to the speaker) as it directly affects the quality of the low frequency output. If the power amplifier has good heat management, the less heat loss the more power efficiency to the speaker.
Based on the above principles , our engineer has developed the new BKSeries professional power amplifier to meet the daily growing fixed installation market. BK series power amplifier power output vary from 400W to 1200W ( 8ohms stereo), 6 models, from Class AB to Class H design.
Features:
1.6 different power outputs to meet different venues.
2. Intelligent heat releasing design ensures working more quietly.
3. Equipped with both XLR and TRS(6.35mm).
4. STEREO, BRIDGED or PARALLEL output modes.
5. With Signal led, Peak led Protect led and Power led.
6. Protection circuit design, overload/short-circuit/DC protection, temperature control system and peak limit.
7.2U & 3U height design.
8.Class H design.
9. Soft-start.

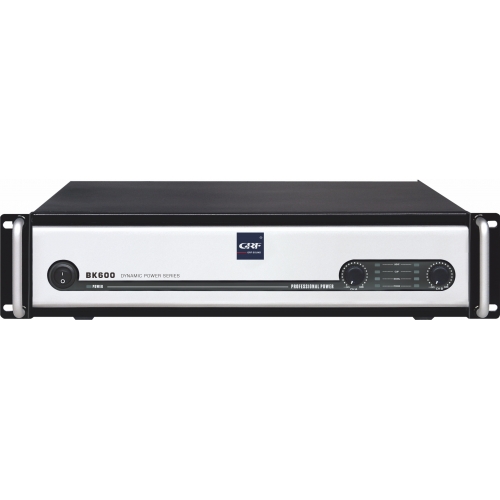

Model | BK600 | |
Rated Power 1KHz THD ≤ 0.1% | Stereo 8ohms | 600W+600W |
Stereo 4ohms | 1060W+1060W | |
Bridge 8ohms | 1300W | |
S/N Ratio (1KHz, a weight) | >98dB | |
Total Harmonic Distortion (at full rated power, 20Hz - 20kHz) | <0.14% | |
Frequency Response | 20Hz-20KHz±1dB | |
Input Sensitivity | Switchable 0.775V/1V/1.4V | |
Max. Input Level | 21dBV/6V | |
Lowest Loading Impedance | Stereo 4~8 ohms, Parallel 4~8ohms,Bridge 8~16ohms | |
Crosstalk @ Rated output power 8 ohms 1KHz | >50dB | |
Damping Factor f = 1KHz 8 ohms | >350 | |
Protection | Over load, short circuit, current limited, DC fault, AC line fuse, thermal Cut off, power up/down transients,Soft start |
|
Indicator | Power(1 blue),Signal(5 blue),Clip(1 blue),Protection(1 blue) | |
Cooling | Variable speed fan,Radiative temperature control | |
Front Panel Controls | Level CH A,CH B ,Power switch | |
Rear Panel Controls | Stereo/Bridge/Single channel mode selector,0.77V/26dB/1.4V INPUT sensitivity switch | |
Connector | Balance XLR Input, XLR link output, Speakon output ,bingding post output | |
Power Consumption (W) @ half power 8ohms | 560 | |
Power Supply | Optional 110V~120V/60Hz or 220~240V50Hz | |
Power cord | European, Chinese, Austrilian or American | |
Net Weight (kg) | 22 | |
Dimensions (HXWXD)mm | 88X365X485 |
