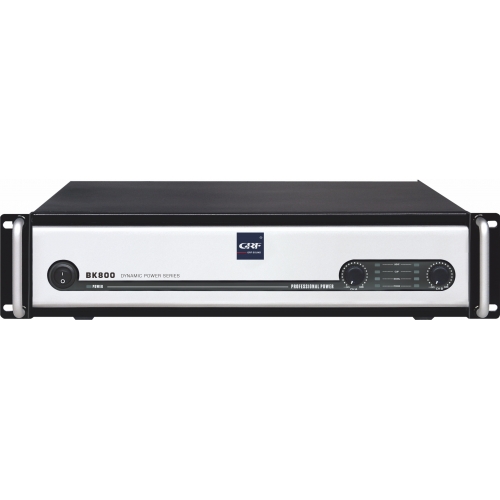

Model | BK800 | |
Rated Power 1KHz THD ≤ 0.1% | Stereo 8ohms | 800W+800W |
Stereo 4ohms | 1400W+1400W | |
Bridge 8ohms | 1600W | |
S/N Ratio (1KHz, a weight) | >102dB | |
Total Harmonic Distortion (at full rated power, 20Hz - 20kHz) | <0.14% | |
Frequency Response | 20Hz-20KHz±1dB | |
Input Sensitivity | Switchable 0.775V/1V/1.4V | |
Max. Input Level | 21dBV/6V | |
Lowest Loading Impedance | Stereo 4~8 ohms, Parallel 4~8ohms,Bridge 8~16ohms | |
Crosstalk @ Rated output power 8 ohms 1KHz | >50dB | |
Damping Factor f = 1KHz 8 ohms | >350 | |
Protection | Over load, short circuit, current limited, DC fault, AC line fuse, thermal Cut off, power up/down transients,Soft start |
|
Indicator | Power(1 blue),Signal(5 blue),Clip(1 blue),Protection(1 blue) | |
Cooling | Variable speed fan,Radiative temperature control | |
Front Panel Controls | Level CH A,CH B ,Power switch | |
Rear Panel Controls | Stereo/Bridge/Single channel mode selector,0.77V/26dB/1.4V INPUT sensitivity switch | |
Connector | Balance XLR Input, XLR link output, Speakon output ,bingding post output | |
Power Consumption (W) @ half power 8ohms | 1120 | |
Power Supply | Optional 110V~120V/60Hz or 220~240V50Hz | |
Power cord | European, Chinese, Austrilian or American | |
Net Weight (kg) | 32 | |
Dimensions (HXWXD)mm | 190X600X526 |
