D.POWER Series

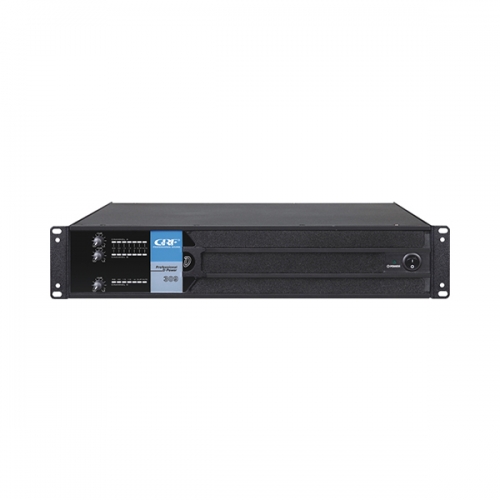

D.POWER309

  • The D.Power series power amplifier is the latest generation of GRF AUDIO after years research & development in the switching power supply technology. It is featuring smallest size and extremely lightweight with excellent sonic performances. The stable power management ensures that even it is in harsh environment such as sharply decrease in the voltage but still able to meet the full power output and distortion-free.

    D.Power series amplifier provides adjustable gain and VPL at rear panel, as well as the selectable input sensitivity and operation modes such as Stereo/Parallel. All those functions enable users to obtain optimum performance and usage. Besides that, efficient cooling system has been built by designing thousands of tiny cooling tank, and two speedy cooling fans transversely mounted inside the heat conduction area which results in excellent airflow and achieve good production to the capacitors.

    D.Power series amplifier including 2CH such as D.POWER900 & D.POWER1500, 3CH such as D.POWER309 and 4CH such as D.POWER406 & D.POWER412. It covers most of the applications , best choice for Two way, Three way or Four way speaker system .




    3 Channel
    Model D.Power309
    8 ohms Stereo Power 3X900W
    4 ohms Stereo Power 3X1800W
    Input connetor XLR female
    Input impedance 20k ohms balanced
    Input Sensitivity 0.77V 1.44V
    Input CMRR >80dB
    Output connector Speakon
    Hum&Noise >112dB
    Damping Factor >1000 @ 8Ω
    THD <0.1% (20Hz-20kHz 1W)
    Frequency Response 20Hz 34KHz,(+0/-0.3dB, 1W/8ohms)
    Level control front level meter, from negative infinity to 0dB
    Cooling variable speed fans, front to rear airflow
    Power Requirement AC voltage 180-240V 50-60Hz
    Amplifier dimensions 88mmx488mmx438mm
    Packing dimensions 15 0mmx 600mmx550mm
    Net weight 12.2
    Gross weight 15.3
