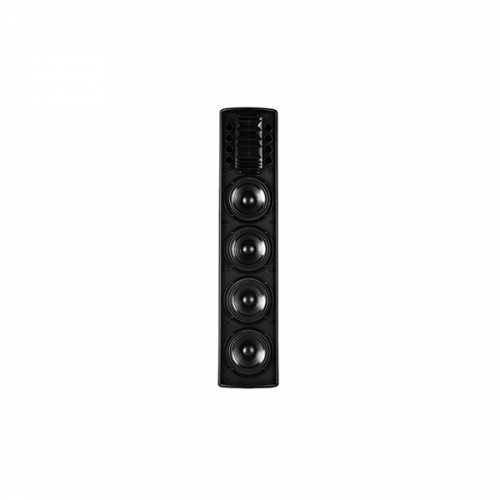

Model |
DF284 |
| Frequency Response | 100Hz~20KHz(±3dB) |
| Component | LF:4x4"(1"NdFeB magnet voice coil), HF:1x1"(1.2"NdFeB magnet voice coil) |
|
Rated Power |
120W AES |
| Recommended Amplifier | 240W into 8ohms |
| Sensitivity | 94 dB |
| Maximum SPL | 116 dB/1m |
| Nominal Impedance | 8 ohms |
| Dispersion | 90°Hx45°V |
| Enclosure | ABS |
| Finish | Black ,scrath paint |
| Grill | Steel grill with black foam |
| Connector | Spring socket |
| Dimension(HWD) | 642x138x144mm |
| N.W. | 5.1kg |
