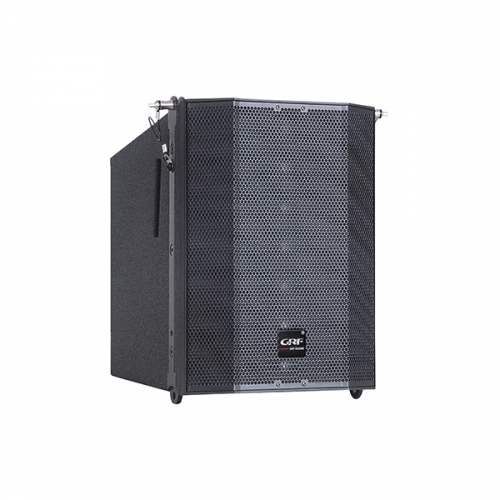

Model |
TT8371 |
| Frequency Response | 120Hz~20KHz |
| Component | LF:8x3"(1"voice coil), HF:7x1.75"(1"voice coil) |
|
Rated Power |
200W AES |
| Recommended Amplifier | 400W into 8ohms |
| Sensitivity | 96dB |
| Maximum SPL | 122dB |
| Nominal Impedance | 8 ohms |
| Dispersion | 120°Hx20°V |
| Enclosure | Birch plywood |
| Finish | Black ,scrath paint |
| Grill | Steel grill with black foam |
| Enclosure protection class | IP45（Optional） |

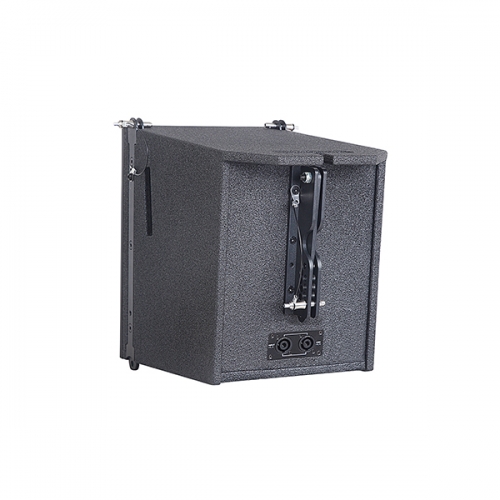

| Connector | 2xNeutrik NL 4 |
| Dimension(HWD) | 350x235x408mm |
| N.W. | 7kg |
