Model |

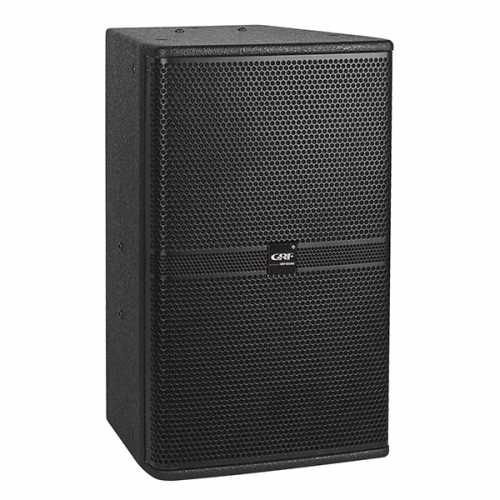

KM7012 |
| Frequency Response | 45Hz~20KHz(±3dB) |
| Component | LF:1x12"(3"voice coil),HF:1x1"(1.44"voice coil) |
|
Rated Power |
350W AES |
| Recommended Amplifier | 700W into 8ohms |
| Sensitivity | 97dB |
| Maximum SPL | 125dB/1m |
| Nominal Impedance | 8 ohms |
| Dispersion | 100°Hx70°V |
| Crossover | 2KHz |
| Enclosure | Birch plywood |
| Finish | Black ,scrath paint |
| Grill | Steel grill with black foam |
| Connector | 2xNeutrik NL 4 |
| Dimension(HWD) | 600x360x380mm |
| N.W. | 21.6kg |
