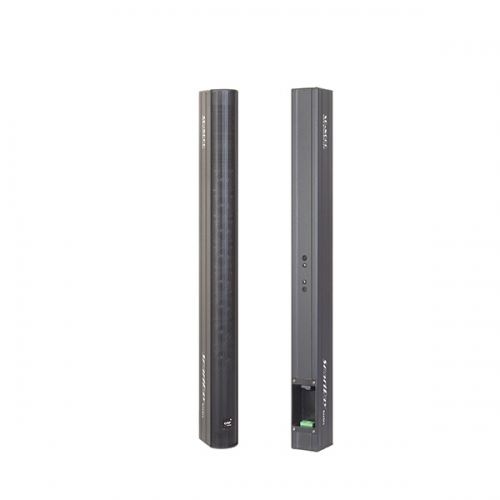

SmartRay Column Speaker

SR8000

  • SR8000 column array sound reinforcement systems are featuring extremely compact, lightweight two-way, the box structure is made of high-strength aluminum alloy, the HF horn is adopting GRF patent design which has Seven Sound Path into Semi-olive wave front, it is providing H120 ° X V 10 ° dispersion angle. The SR8000 built-in 1X1.4 "high-performance compressed driver, and respectively  (SR8000) 8X2”high efficient ultra-low distortion neodymium full range cone speaker units. In order to extend low frequency to the SR sound system, we specially designed the SR118 Passive and SR118A active subwoofer to match SR8000 full range speaker. Slim, beautiful and extremely flexible set up making the system excellent operation and control, with the lowest distortion, high-quality clear high-frequency and powerful low-frequency, the system produces perfect audio sound reinforcement system.
    We offer optional two connection ports, they are Phoenix connector or NL4 speakon. The full range speaker can be wall mounted, stand on SR181S/181SDA or pole mounted on speaker stand. Suitable for multi-function hall, conference room, church, Railway station, exhibition center applications.

    Model SR8000
    Frequency response 180Hz~18KHz
    Power handling 160W AES
    Sensitivity 92dB
    Max. SPL peak 114dB
    Dispersion 90 H x60V
    Components LF:8x2"(1"voice coil),HF:1x1"
    Nominal impedance 8ohms
    Input connectors 1 X NL4,1X Phoenix Terminal
    Enclosure material Aluminium
    Finish Black ,scrath paint
    Dimension(HWD) 800×65×89mm
    Net weight(kg) 3kg
