| Model |
SR181SDA |
| Frequency Response |
55Hz-150Hz |
| Component |
1x18"(4"voice coil) |
| Built-in power amplifier |
2x600W+1x1500W |
| Sensitivity |
104dB |
| Enclosure |
Birch plywood |
| Finish |
Obsidian Durable Finish |
| Grill |
Steel grill with black foam |
| Connectors |
3xNL4+XLR |
| Dimension(HWD) |
686x523x724mm |
| N.W. |
46kg |
Technical parameter
Rated power (EIAJTHD=1%1KHZ) : 8 ohms 600W+600W+1500W
4 Ohms 960W+960W+2000W
THD+N(10% rated power) : <0.5%
IMD-SMPTE110% rated power) : <0.3%
CROSSTALK: >65dB
Frequency response -0.5dB 1dB 20-20KHz
Signal-to-noise ratio >90dB>95dB(A weight)
Power input 180V-240VAC 50/60HZ

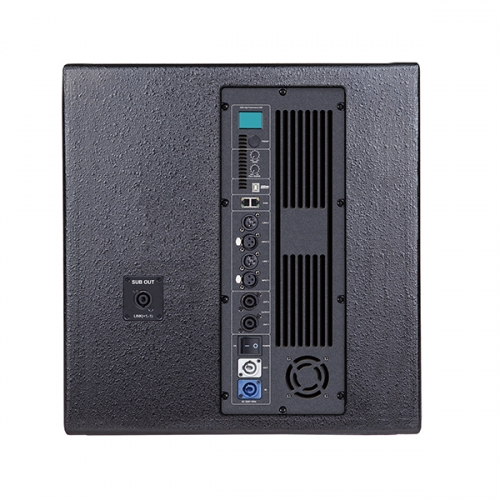

Function description of the rear panel
1. Display - Displays basic information about DSP operating status.
2. Encoder push button - directly control DSP module Settings.
3. Ultra low tone signal regulation.
4. Full frequency signal adjustment.
5.USB control port.
6.RS485 control port.
7.LINK2 signal output port.
8.INPUT2 signal input port.
9.LINK1 signal output port.
10.INPUT1 signal input port.
11.OUT2 power amplifier output port.
12.OUT1 power amplifier output port.
13. Power switch.
14. Power output port.
15. Power input port.
16. Efficient cooling fan.
