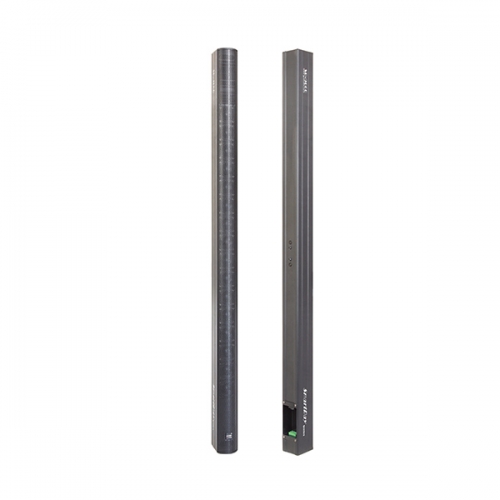

SR9000 column array sound reinforcement systems are featuring extremely compact, lightweight two-way, the box structure is made of high-strength aluminum alloy, the HF horn is adopting GRF patent design which has Seven Sound Path into Semi-olive wave front, it is providing H120 ° X V 10 ° dispersion angle. The SR9000 built-in 1X1.4 "high-performance compressed driver, and respectively 16x2" high efficient ultra-low distortion neodymium full range cone speaker units. In order to extend low frequency to the SR sound system, we specially designed the SR1181S Passive and SR181SDA active subwoofer to match SR9000 full range speaker. Slim, beautiful and extremely flexible set up making the system excellent operation and control, with the lowest distortion, high-quality clear high-frequency and powerful low-frequency, the system produces perfect audio sound reinforcement system.
We offer optional two connection ports, they are Phoenix connector or NL4 speakon. The full range speaker can be wall mounted, stand on SR118/118A or pole mounted on speaker stand. Suitable for multi-function hall, conference room, church, Railway station, exhibition center applications.
| Model | SR9000 |
| Frequency response | 180Hz~18KHz(±3dB) |
| Power handling | 320W |
| Sensitivity | 92dB |
| Max. SPL peak | 120dB |
| Dispersion | 90 H x60V |
| Components | 2" Neodymium x16 |
| Nominal impedance | 4ohms |
| Input connectors | 1 X NL4,1X Phoenix Terminal |
| Enclosure material | Aluminium |
| Finish | Black ,scrath paint |
| Dimension(HWD) | 1255×65×89mm |
| Net weight(kg) | 5kg |
